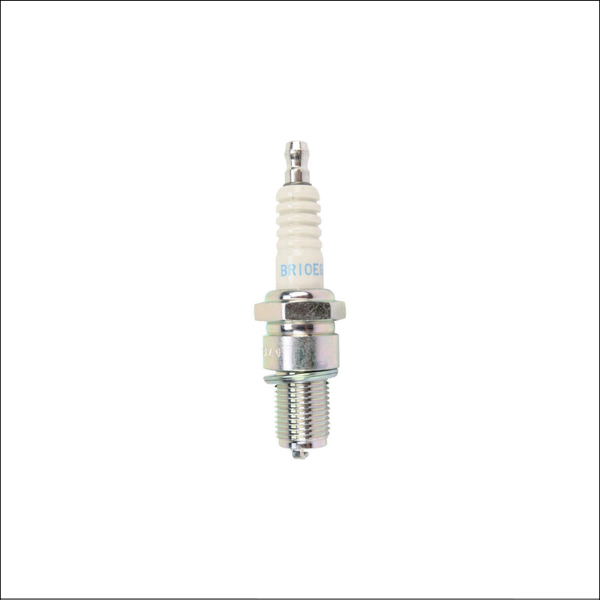

NGK BR10EG Spark Plug

SKU: 87295138304 Don’t just ask for a spark plug, insist on NGK. Spark plugs used for racing must withstand especially hard stresses. The speeds during a race are frequently in excess of 10,000 rpm. Temperature, pressure, and vibrations in the combustion chamber are so immense that conventional ground electrodes could break or melt. For this reason, racing spark plugs often come with specially designed ground electrodes, the most extreme form with a ring-shaped ground electrode. The spark jumps from the middle electrode to the ring-shaped ground electrode. Shell Thread Size: 14mm Thread Pitch: 1.25mm Seat Type: Gasket Resistor Value: 5K Ohm Reach: 19mm (3/4″) Hex Size: 21mm (13/16″) Terminal Type: Removable Nut Overall Height: ISO Gap: 0.6mm (0.024″) Centre Electrode Material: Nickel Type: Fine Wire Size: 1.3mm Projection: Non-Projected Ground Electrode Material: Nickel Type: Standard Quantity: 1 Specifications Heat Range: 10 Resistor: Yes
